LW8A-40.5W/T2000-31.5戶外型SF6斷路器適用于交流50HZ、額定電壓40.5kV的三相電氣系統。它用于控制和保護電氣系統以及測量電流互感器。
結構特點
1.LW8A-40.5六氟化硫斷路器為戶外瓷瓶柱結構 2.采用壓縮空氣滅弧室，分?jǐn)嘈阅軆?yōu)異，電氣壽命可達20次； 3.密封性能可靠，靜密封采用“O”型密封圈結構，動密封采用帶彈簧壓力補償結構的“V”型密封環。變壓器二次接線板采用壓注工藝生產，抗老化性能強，保證年漏氣率＜0.5% 4.安裝底盤和支架采用整體軋制鋼板 5.內部或外部電流互感器的測量級鐵芯由高磁導率的微晶合金材料制成 技術參數No 名稱Name 數值Data 1 額定電壓Rated voltage 40.5 2 額定電流Rated current(A) 1600/2000 3 額定絕緣水平
Rated Insulate
evel工頻耐壓(1min)
Power frequency withstand voltage(kV)/1min95 雷電沖擊耐受電壓
Thunder impulse withstand voltage (kV185 4 額定短路開斷電流Rated short-circuit breaking current(kA) 25/31.5 5 額定失步開斷電流Rated out-of-phase breaking current (kA) 7.9/10 6 異相接地故障開斷電流(kA)breaking current of earth fault in different phase(kA 27.4/34.8 7 額定單個電容器組開斷電流Rated breaking current of single capacitor bank(A 400 8 額定操作順序Rated Operating sequence O-0.3S-CO-180S-CO 9 SF6氣體額定電壓Rated SF6 gas pressure(Mpa) 0.5 10 分閘時間ms(額定電壓)Switch-off time(on rated voltage)(ms 30≤t<40 11 合閘時間ms(額定電壓)Switch-on time(on rated voltage)(ms 60≤t<80 12 額定短路關合電流(峰值)Rated shot-circuit making current(peak)(kA) 63/80 13 額定短路持續時聞Rated short-circuit duration(s 4 14 額定短路耐受電流Rated short-circuit with stand current (kA) 25/31.5 15 額定峰值耐受電流Rated peak value withstand current(kA 63/80 16 機械壽命試驗(次)Mechanical life(time 10000 17 額定短路開斷電流31.5kA/40kA累計開斷次數(次)
Cumulative breaking times of rated short-circuit breaking
current 31.5 kA/40kA(time20 18 額定電流累計開斷次數(次
Cumulative breaking times of rated current(time2000 19 SF6氣體年漏氣率(%)Annual leakAge rate of SF6(% <0.5 20 SF6氣體微量水分含量(V/W)(PPM)Water content of SF6(V/V)(PPm <150 21 斷路器外絕緣泄露比距(mm/kV)Outer insulating leakAge ratio distance(mm/kV) >25 22 斷路器質量kg Weight of the circuit breaker 1000

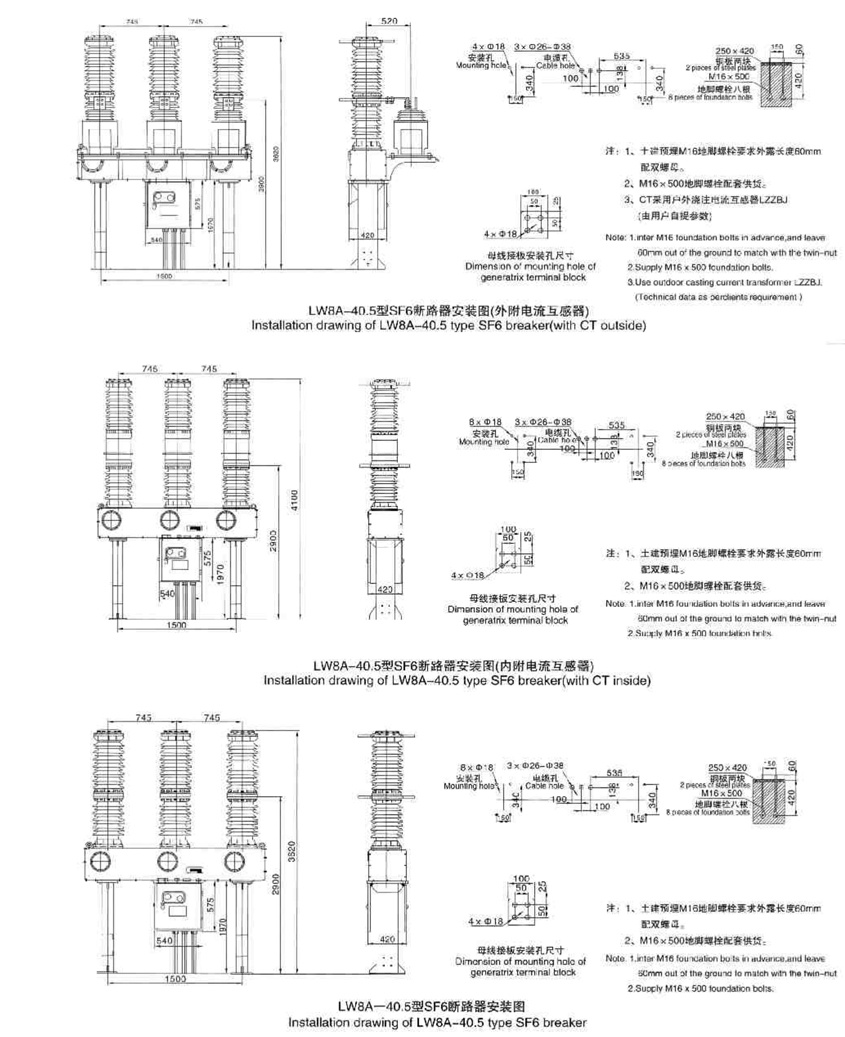

外形尺寸及安裝圖
